F-type centrifugal fan

Source：HUNTON   |   Release Time：2025-05-15

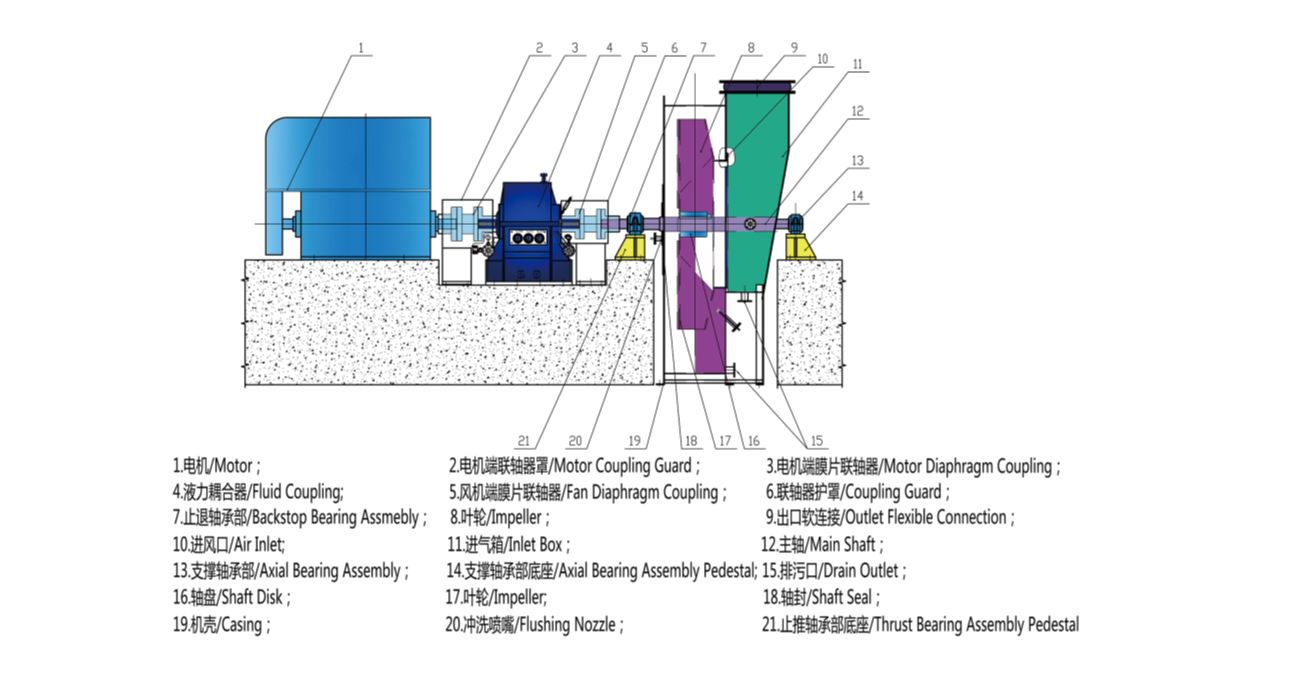

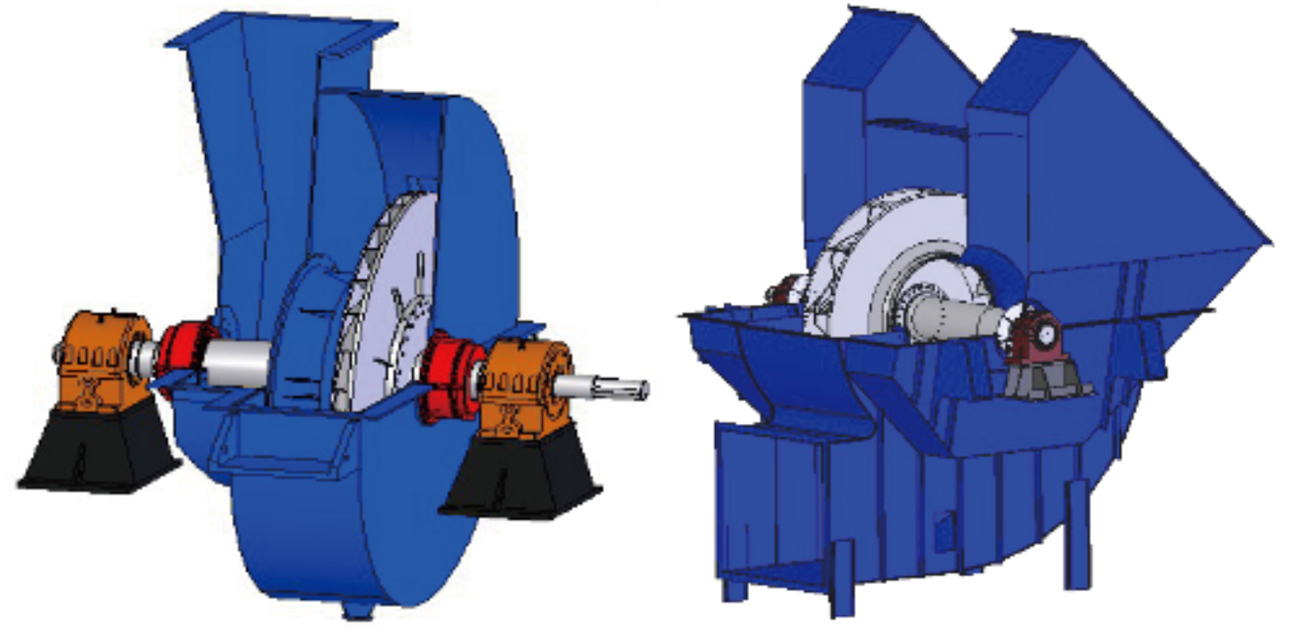

F-type transmission indicates that the ventilation fan is a double support structure, with the bearing box placed on both sides of the casing and intake box. The coupling is assembled on the outer side of the bearing, and the bearing housing and motor are driven through the coupling. Select and configure fans according to the actual needs of users. F-type transmission fans are divided into single suction single output double support structure and double suction single output double support structure. The conventional structure is equipped with an intake box. Can be used as a blower and induced draft fan. Widely used in various industries.
